Multi-Dimensional Design - Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.
Ginormous Vertical Graphics Support - Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.
Included Luxury PCIE 4.0 Riser Cable - A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.
Cooling - Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups.
Large Cooler Support - Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.
Product Description
The all-new Y40 is designed from every dimension to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.
MORE DETAILS:
Type - ATX Mid Tower
Volume - 439mm x 240mm x 472mm
Case Dimensions - 439mm x 240mm x 472mm
Motherboard Support - ITX, mATX, ATX
Power Supply - ATX up to 224mm in length
Video Card Max Dimensions - 422mm length, 94mm height (80mm height or less recommended for best cooling)
Fan Support (Side) - 2x 120mm/140mm
Fan Support (Top) - Top: 3x 120mm
Fan Support (Rear) - 1x 120mm (1x 120mm, 1300 rpm included)
Fan Support (Bottom) - 1x 120mm/140mm (1x 120mm, 1300 rpm included)
Radiator Support (Side) - 120, 140, 240, 280mm up to 120mm thick
Radiator Support (Top) - 120, 240, 360mm
Radiator Support (Rear) - 120mm
CPU Cooler Height - 183mm
Storage - 1 x 3.5" HDD or 2 x 2.5" SSD
Expansion Slots - 4 + 6 half-height
Specifications
Order Attributes
UPC
848604044255
General
UPC
848604044255
Brand Name
HYTE
Vendor Part Number
CS-HYTE-Y40-B
Model Number
CS-HYTE-Y40-B
GameStop Exclusive
false
Age
All
Dimension
Product Length
21.5
Product Width
13
Product Height
21.5
Product Unit of Measure
in
Product Weight
23
Product Weight Unit of Measure
lbs

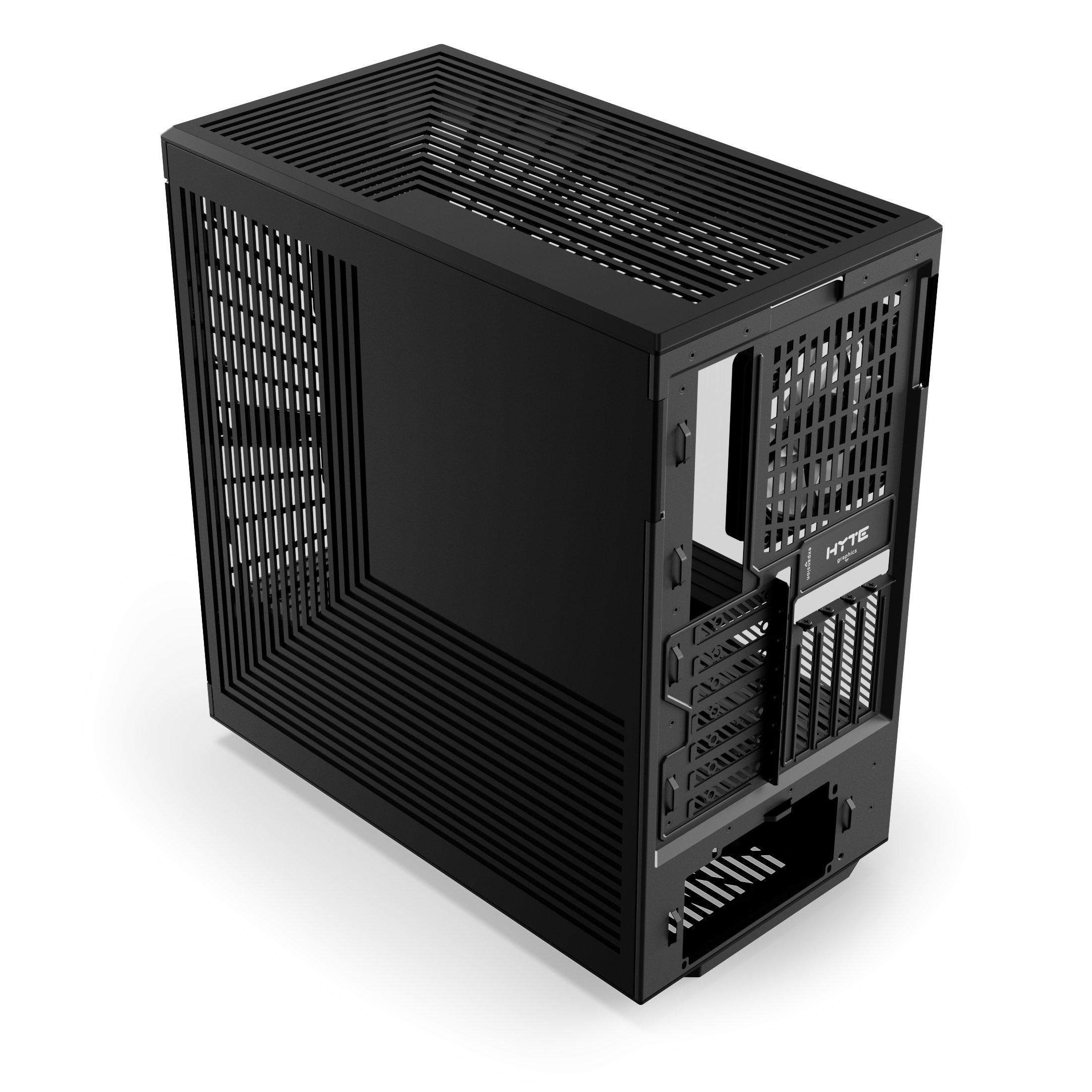

HYTE Y40 S-Tier Aesthetic Panoramic Tempered Glass Mid-Tower ATX Computer Gaming Case with PCIE 4.0 Riser Cable Black
Multi-Dimensional Design - Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.
Ginormous Vertical Graphics Support - Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.
Included Luxury PCIE 4.0 Riser Cable - A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.
Cooling - Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups.
Large Cooler Support - Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.
Product Description
The all-new Y40 is designed from every dimension to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.
MORE DETAILS:
Type - ATX Mid Tower
Volume - 439mm x 240mm x 472mm
Case Dimensions - 439mm x 240mm x 472mm
Motherboard Support - ITX, mATX, ATX
Power Supply - ATX up to 224mm in length
Video Card Max Dimensions - 422mm length, 94mm height (80mm height or less recommended for best cooling)
Fan Support (Side) - 2x 120mm/140mm
Fan Support (Top) - Top: 3x 120mm
Fan Support (Rear) - 1x 120mm (1x 120mm, 1300 rpm included)
Fan Support (Bottom) - 1x 120mm/140mm (1x 120mm, 1300 rpm included)
Radiator Support (Side) - 120, 140, 240, 280mm up to 120mm thick
Radiator Support (Top) - 120, 240, 360mm
Radiator Support (Rear) - 120mm
CPU Cooler Height - 183mm
Storage - 1 x 3.5" HDD or 2 x 2.5" SSD
Expansion Slots - 4 + 6 half-height
Specifications
Order Attributes
UPC
848604044255
General
UPC
848604044255
Brand Name
HYTE
Vendor Part Number
CS-HYTE-Y40-B
Model Number
CS-HYTE-Y40-B
GameStop Exclusive
false
Age
All
Dimension
Product Length
21.5
Product Width
13
Product Height
21.5
Product Unit of Measure
in
Product Weight
23
Product Weight Unit of Measure
lbs
